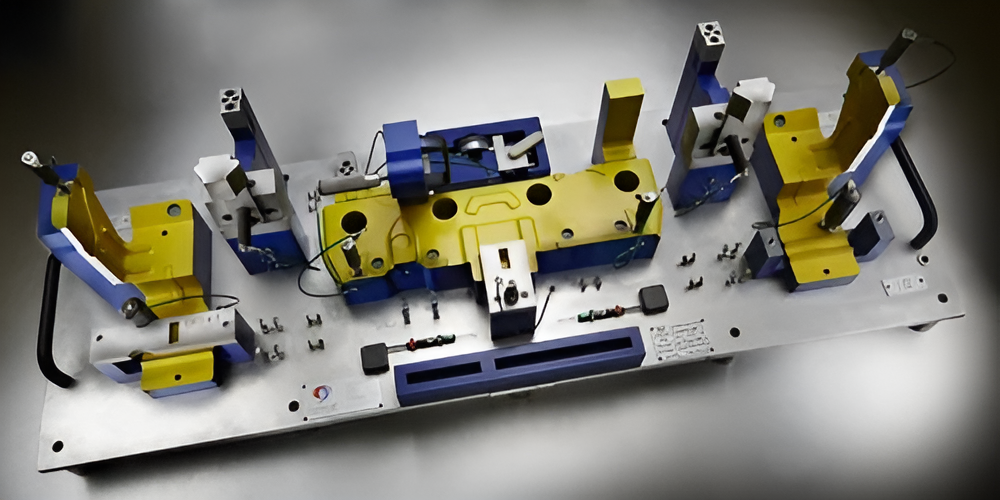

Welding jigs and fixtures are essential tools in the welding process, designed to hold, support, and position components securely for accurate and consistent welding. A welding jig primarily ensures proper alignment of parts before and during welding, while a fixture adds more functionality by firmly clamping the workpieces in place, minimizing distortion and movement. These tools improve productivity, repeatability, and weld quality, especially in mass production environments. They are typically made from materials like mild steel or aluminum, resistant to welding heat and spatter. Custom-designed to match specific components or assembly processes, welding jigs and fixtures reduce reliance on skilled labor and minimize human error. They also enhance safety by stabilizing workpieces, preventing accidents during welding operations. Common applications include automotive, aerospace, and heavy machinery manufacturing. Using jigs and fixtures not only ensures dimensional accuracy but also lowers production time and cost by streamlining the welding workflow.
Positioning and Holding : Ensures that components are held securely in the correct position and orientation during welding to maintain dimensional accuracy.
Repeatability : Allows for consistent and repeatable welds across multiple parts, ensuring uniformity in production.
Clamping and Stability : Reduces movement or distortion during welding by providing strong clamping and stable support.
Increased Productivity : Speeds up the welding process by eliminating the need for frequent measurements and adjustments.
Improved Safety : Minimizes human intervention and handling during welding, reducing the risk of accidents and operator fatigue.
Enhanced Accuracy : Reduces human error by providing predefined weld paths and fixed positions for components.
Support for Automation : Essential for robotic and automated welding systems, as they provide accurate reference points for programming.
